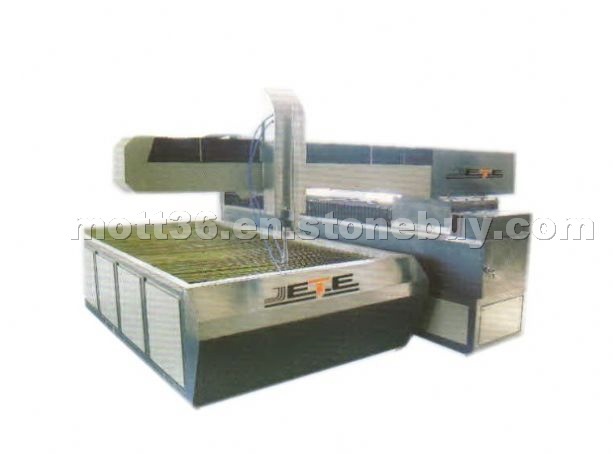

Water Jet Cutting Machine

• Place of Origin:

   China

• Type:

  Others

• Genre:

  Machinery & Equipment

• sCode:

  STPR1464808

• Place of Origin:

  China
• Water jet Cutting machine Platform
  -Max. Traverse speed: 10m/min
  -Cutting Precision: 0.1mm , Repeat positioning precision
  : 0.02mm
  -Full iron structure guarantee stable body of whole platform
  and motion system
  -Adjustable material holding bar for large material.
  -Imported zero clearance ball crew and line rail imported from
  Taiwan.
  -Taiwan made/ YASKAWA/SIEMENS AC servo (Ac Motor)
  -Auto concentrate lubricating system.
  -Abrasive tank capacity: 10KG
  -Automatic water draining system.
  -Air-control hi-pressure valve system.
  UHP SYSTEM
  - Max. Pressure: 300Mpa
  - Main motor: 30HP/22KW
  - Power supply: 380V/50Hz
  - Hi-pressure Intensifier : U.S JET made
  - Electronic Valve: U.S SUNNY.
  - Intelligent variable stroke hydraulic pump.
  - Manual-adjust pressure valve for different situation .
  - Imported "GL" and circulating water cooling system.
  - Water pump made in Italy.
  - High capacity hi-pressure water reservoir made of imported
  stainless steel.
  - Siemens PLC
  - Over heat protecting system Waterjet cutting head
  - Air-control hi-water valve
  - Abrasive Waterjet nozzle: ROCTEC brand
  - Waterjet cutting head -Orifice: 0.17mm /0.25mm/0.30mm/0.33mm/0.36mm
  Control System
  - CNC CONTROLLER made in Taiwan
  - GT (developed with Nanjing University) or WH(Shanghai) software, can read the drawings very fast.
  - CAD/CAM system Model :GT-card.
  -Compatible format: DXF, DWG, IGS, PRT, ASC, STL, NFL, STEP, etc.
  - Can automatically transform, adjust and add special parameters according to the material, thickness and processing demand .Enlarge the database automatically.
  - Read CAD drawing and scan scan BWP format drawing, and
